C- Regular washing and drying machine
S- Stainless washing and drying machines
Pre-rinse with easy-mounting spray nozzles can improve the washing result.
The upper and lower brushes are independently driven by frequency drive to ensure driving stability and speed evenness.
Option of different categories of soft brushes for washing soft-coated low-e glass at high speed without damaging the coating.
Option of single side or double side disc brushes to wash special glass.
All water spraying tubes are made of SS304 pipes, and are mounted in easy-fit method, very easy to dismantle for cleaning.
Special designed water isolating partition and water collecting pans can avoid contamination between different zones.
Drawer type water tanks are made of SS304 with bottom inclined to the drainage spot.
The water tanks have heaters that can keep the water temperature in cold weather.
There water tanks has PH sensors to facilitate special washing.

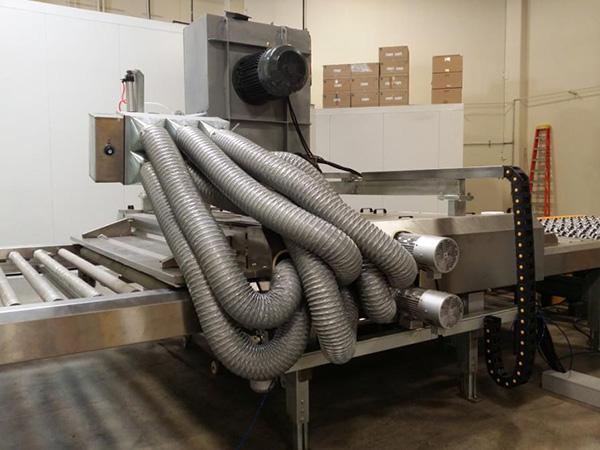

SS201 air knives are designed to be efficient and low noise.
The fan inlet is fine filtered to ensure no dust to glass.
Options: PLC process control with touch screen HMI;
Automatic thickness checking and responding;
Multi-point emergency stop.
|MODEL||Max. Glass Width (mm)||Min. Glass length (mm)||Glass Thickness (mm)||Equipment Dimension (meter)||Installed Power||Equipment Weight (kg)|
1. The data in the chart are for sales reference only, and shall not cause any contractual obligations.
2. Higher speed washing machines are available, max speed is 12m/min.
3. Customer size machines can be made.
