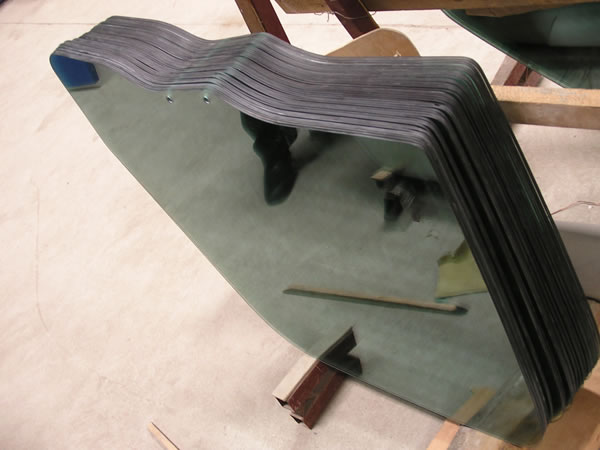

Automotive sidelite, Architectural glass, Decorative glass, Furniture glass, Electric appliance glass, etc.
High accuracy shaping:

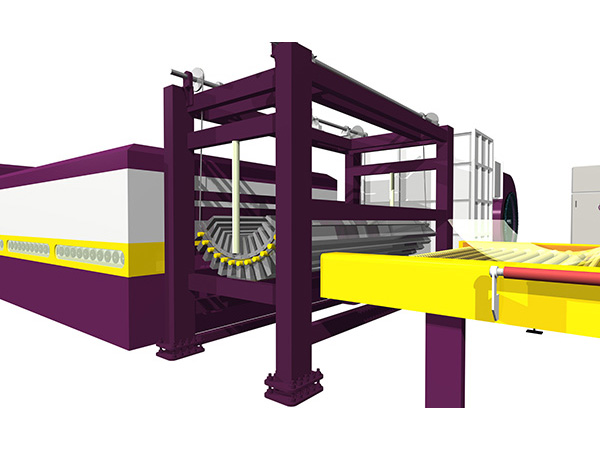

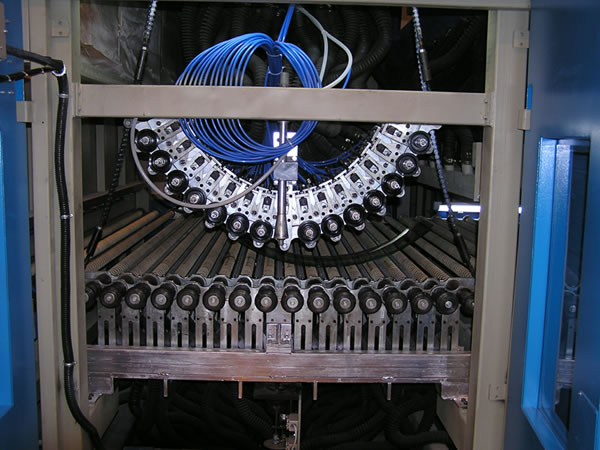

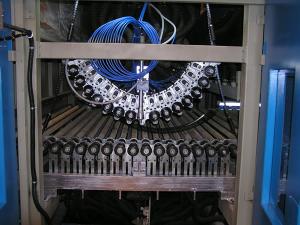

High precision formation parts, clutch between pressing rollers and conveyer rollers arc-wise oscillation before quenching secure high accuracy in shape, radius and tapering, and effective reduces earing.
Wide range of products:
Glass thickness from 2.8mm to 19mm
Glass size from 200mm x 320mm to 3500mm x 6000mm
Radius from 180mm ~ 45 meters.
Can temper soft-coat low-e glass, screen printed glass and enameled glass.
Easy control and adjustment:
Easy to switch over thickness.
Easy to set and change radius.
Full automatic production process.

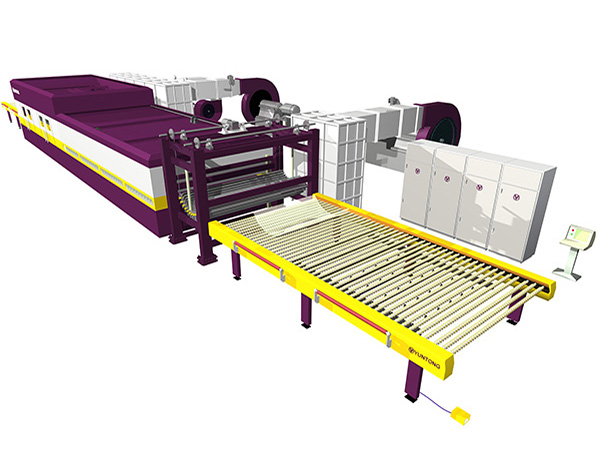

Basic Data of H-Series Bending and Tempering System
|MODEL||Max. Glass Size (mm)||Min. Glass Size (mm) W x A||Raidus||Glass Thickness mm|
|WG12H||1200||600, 1000||150 x 350||350mm||25m||2.8 ~ 6|
|WG15H||1500||600, 1000, 1500||150 x 350||380mm||30m||3.2 ~ 10|
|WG18H||1800||600, 1000, 1500||200 x 400||400mm||30m||3.2 ~ 10|
|WG21H||2100||600, 1000, 1500, 2000||200 x 400||420mm||45m||3.5 ~ 10|
|WG24H||2400||1000, 1500, 2000, 2500||200 x 400||600mm||60m||3.5 ~ 10|
The data in this chart are for sales reference only, and should not cause any contractual obligations.
