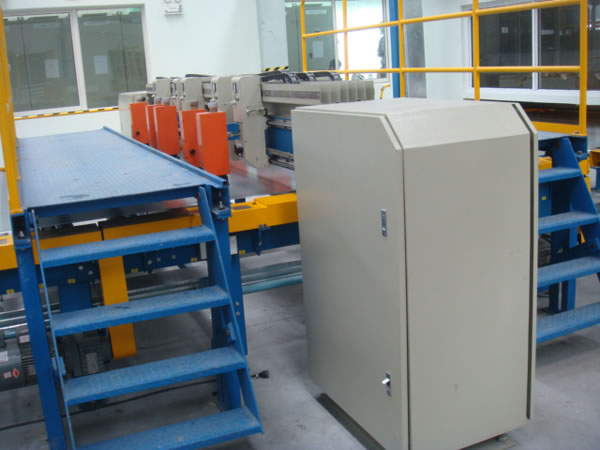

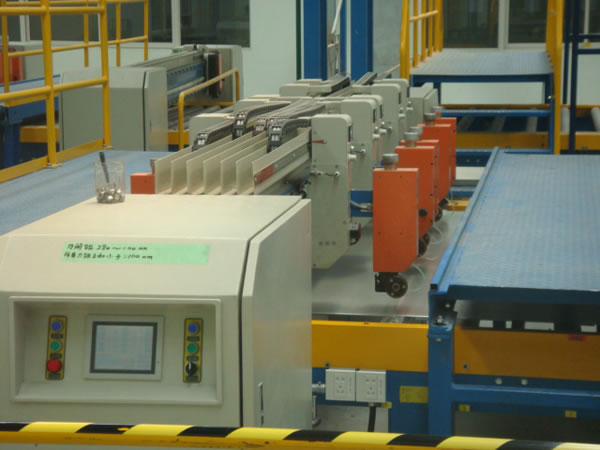

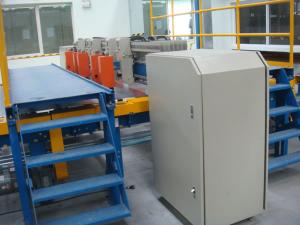

Glass Longitudinal Cutting Machine

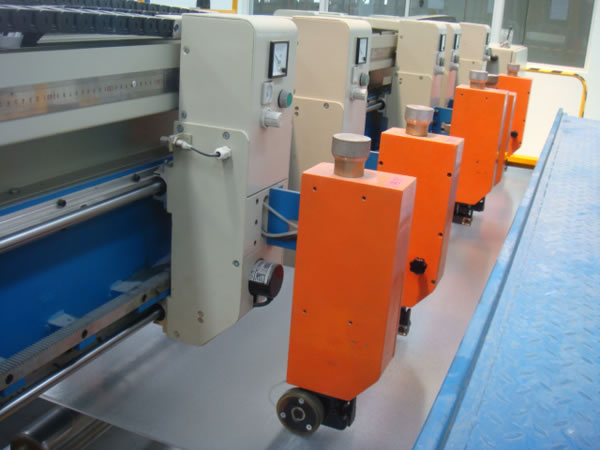

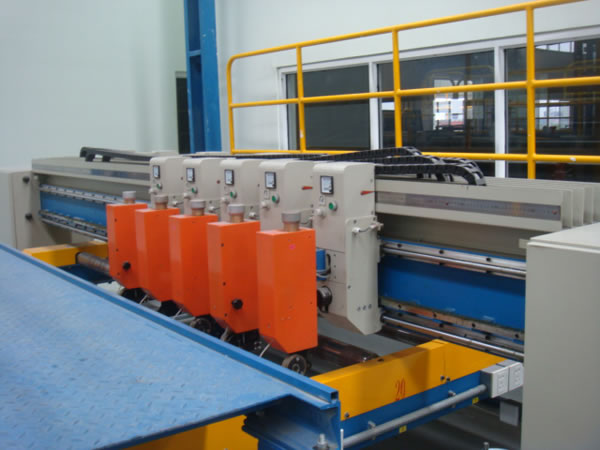

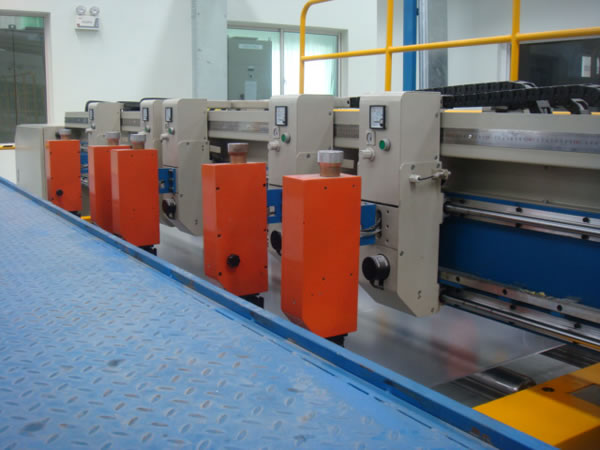

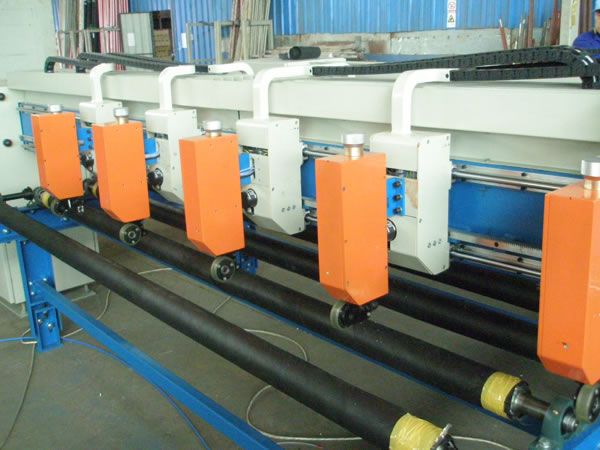

There is a screw driven by servo motor and five cutting tools on either side of the bridge of the glass longitudinal cutting machine. While the cutters on one side are cutting, the cutters on the other side will conduct tracking based on signals from the control systems. The cutters on one side act as hot backup for those on the other side. As for the secondary edge snapping of glass, the minimum distance between two cutters is 80mm.

The glass longitudinal cutting machine is used for longitudinal cutting of glass ribbon.

Technical Parameters

Max width of glass 5M
Cutting tolerance ±0.5mm
Thickness 1~19 mm
Cutting pressure adjustment 0~100 N
Tolerance of automatic positioning ±0.5 mm

Yuntong is a professional glass longitudinal cutting machine manufacturer and supplier in China. In addition, we provide flat glass tempering furnace, automatic control system, vertical glass washing machine, laminated glass processing equipment, glass stacker, and more.

Terms of trade
1. Minimum order quantity (MOQ): one piece or complete plant
2. Delivery time: 3-6 months (except float glass production line)
3. Port of loading: port of Tianjin (Xingang)
4. Terms of payment: advance payment (30% TT) + payment before shipment (60% LC or TT) + the balance of payment (10% TT or LC) after final acceptance.
