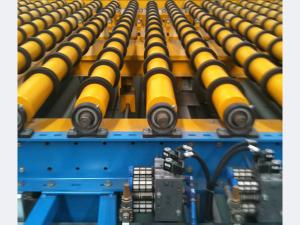

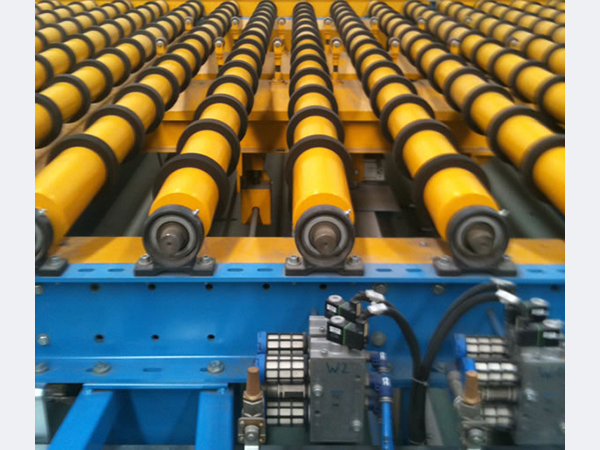

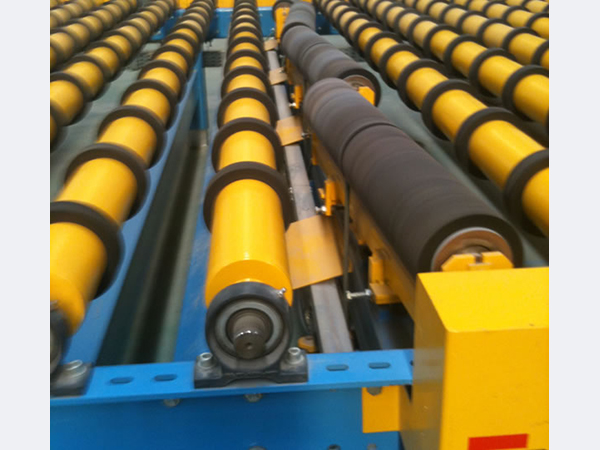

Longitudinal Snapping and Separation Device

Advantages
The longitudinal snapping and separation device consists of longitudinal snapping wheels, separating rollers, their respective presetting tools and pneumatic actuating devices. It is used to snap small-size glass plate along the longitudinal shear mark in the middle and keep certain intervals between the parts that have snapped off. As soon as the command for longitudinal separation is sent by the cold end control system, the longitudinal snapping wheel and separation roller, driven by the pneumatic actuating mechanism, will reach the preset positions where the glass plate with shear mark is snapped into parts by gravity or pneumatically. Then the longitudinal separation roller separates the parts and keeps an interval between them.

Use
The longitudinal snapping and separation device separates the glass ribbon longitudinally into several ribbons, which facilitate cutting them into glass panes of certain sizes.

As a China-based manufacturer and supplier of longitudinal snapping and chevron device, Yuntong provides a wide variety of products including glass washing machine, cross bending glass tempering furnace, flat glass tempering furnace, automatic glass laminating line, and others.

Terms of trade
1. Minimum order quantity (MOQ): one piece or complete plant
2. Delivery time: 3-6 months (except float glass production line)
3. Port of loading: port of Tianjin (Xingang)
4. Terms of payment: advance payment (30% TT) + payment before shipment (60% LC or TT) + the balance of payment (10% TT or LC) after final acceptance.
