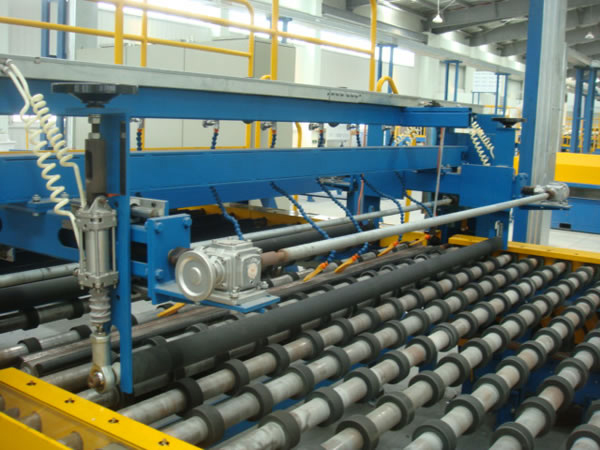

Cross Snapping Device

The cross snapping device uses a Φ150 rubber roller as the main roller for snapping, with the max. stroke of 50mm. The following roller is driven by an air cylinder. In case of producing thin glass, adjust the screw handle to lift the main snapping roller a little higher than the upper surface of the roller table. The glass will be snapped under its own weight when the shear mark reaches the generatrix of the main snapping roller. When it comes to producing thick glass, the movement of main roller uses duplex cylinder drive and glass snapping is achieved by the force of glass weight and impact by the roller.

The cross snapping device is used to transversely snap glass ribbon into glass panes of certain sizes.

Yuntong is a cross snapping device manufacturer in China. Our company offers a broad range of products such as dual-chamber convection heating flat glass tempering furnace, automatic glass laminating line, air exchanger, driving device, and glass washing machine.

Terms of trade
1. Minimum order quantity (MOQ): one piece or complete plant
2. Delivery time: 3-6 months (except float glass production line)
3. Port of loading: port of Tianjin (Xingang)
4. Terms of payment: advance payment (30% TT) + payment before shipment (60% LC or TT) + the balance of payment (10% TT or LC) after final acceptance.
