Glass Severing Machine and Roller

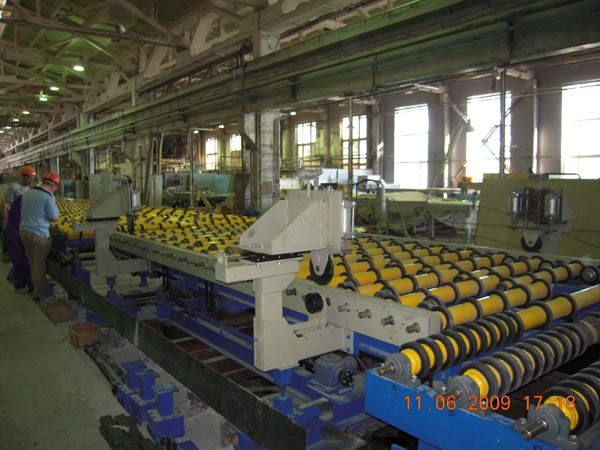

The snapping roller is equipped with a glass severing machine for double snapping. The roller offers automatic speed control within 150-1800 m/h. The edge-snapping wheels conduct tracking of the glass movement automatically or manually. The width of roller table can be adjusted automatically according to the glass width. Two bridges of pneumatic snapping wheels enable edge snapping once or twice. An auxiliary prepressing device is installed to improve the capability of severing thick glass. There are chutes on both sides of the glass severing machine; when the glass plate, after longitudinal cutting, undergoes edge snapping through the severing unit, the leftovers fall into the chutes.

The glass severing machine is used for snapping glass edge.

Technical Parameters

Snapping edge way pneumatic, electric or self weight
Snapping edge time 1 time or 2 times
Snapping way pneumatic and self weight
Snapping power 9000N (maximum)
Snapping roller trip 40mm (maximum)
Air pressure ≥0.4 Mpa

Yuntong is a China-based glass severing machine and roller manufacturer. We offer an extensive line of products, including dual-chamber convection heating flat glass tempering furnace, horizontal glass washing machine, semi-automatic glass laminating line, cooler and support device, among others.

Terms of trade
1. Minimum order quantity (MOQ): one piece or complete plant
2. Delivery time: 3-6 months (except float glass production line)
3. Port of loading: port of Tianjin (Xingang)
4. Terms of payment: advance payment (30% TT) + payment before shipment (60% LC or TT) + the balance of payment (10% TT or LC) after final acceptance.
